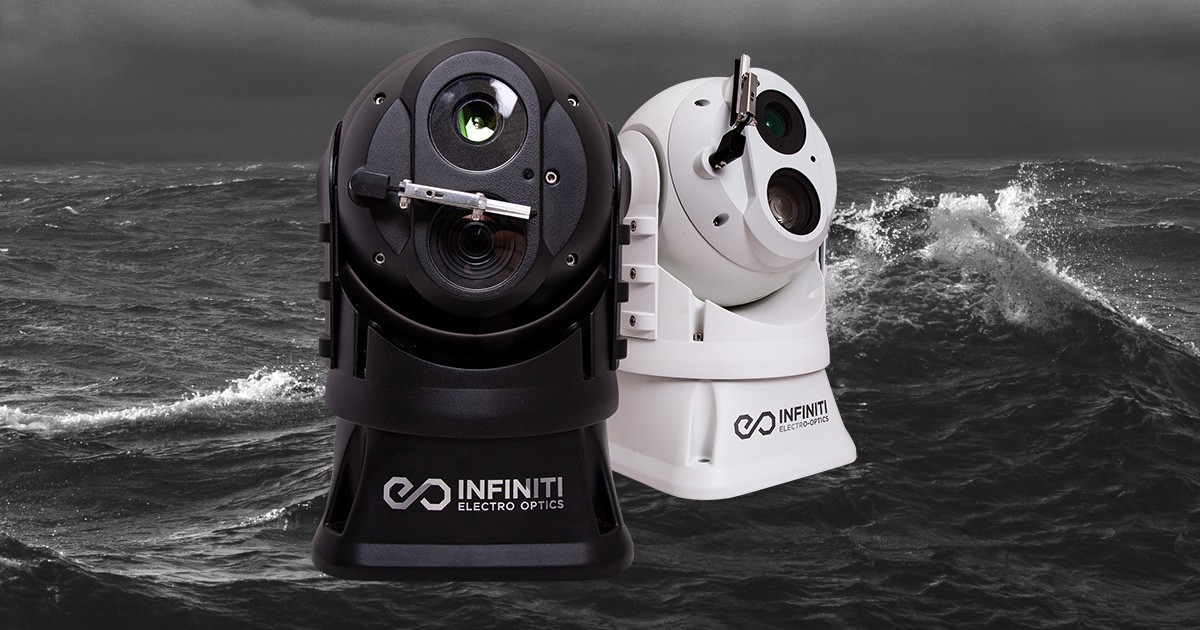

Infiniti Atlas Multi-Sensor Visible & Thermal Imaging PTZ Camera

Atlas Versatile All-Weather PTZ Camera System

The Atlas is a portable all-weather PTZ camera system featuring an impressive slate of day/night zoom camera options with both wide-angle and long-range imaging capabilities and 2 Megapixel or 8 Megapixel (4K) high resolution sensors. Night vision capabilities can be added with thermal sensors rated for up to 6km of detection or ZLID™/IR LED illumination which allows for HD nighttime performance up to 750m in complete darkness.

All of this comes in a rugged aluminum weather or marine-ready enclosure, with powerful PTZ capabilities, making the Atlas an excellent choice for marine and vehicle deployments by police, navy, militaries and more around the world.

Night Vision

Integrated Night Vision

Magnifying glass with plus mark

Incredible Zoom

Maritime vessel in ocean waves

Rugged & Weatherproof


Optional Gyro Stabilization

Visible/NIR Camera Options

Get closer and capture the more detail on distant subjects with the impressive optical zoom of the visible light (color) camera options. The Atlas offers full-HD image resolution while maintaining a detailed long-range clarity that only optical zoom can provide.

Learn More about Visible Light Imaging

8M-30X

6–180mm 30X Long-Range Visible/NIR 8MP/4K Camera

The 8MP 1/1.8" sensor offers incredible 4K resolution with excellent spectral sensitivity for both visible and NIR wavelengths, making it a true day/night camera providing clear color images by day and black and white images at night.

Paired with the precision-engineered 6–180mm lens, this camera boasts a 30X continuous optical zoom range offering anything from a wide 65.2° to a narrow 2.44° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 840mm lens.

More Info
90
ppm
Pixels Per Meter @ 1km
30X
Zoom Factor
8
MP
Sensor Resolution

4M-30X

4.7–141mm 30X Long-Range Visible/NIR 4MP Camera

The 4MP 1/2.9" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 4.7–141mm lens, this camera boasts a 30X continuous optical zoom range offering anything from a wide 67.9° to a narrow 2.14° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 965mm lens.

More Info
72
ppm
Pixels Per Meter @ 1km
30X
Zoom Factor
4
MP
Output Resolution

4M-24X

5–120mm 24X Long-Range Visible/NIR 4MP Camera

The 4MP 1/2.9" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 5–120mm lens, this camera boasts a 24X continuous optical zoom range offering anything from a wide 56.6° to a narrow 2.57° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 800mm lens.

More Info
60
ppm
Pixels Per Meter @ 1km
24X
Zoom Factor
4
MP
Output Resolution

30X

4.8–144mm 30X Long-Range Visible/NIR 2MP Camera

The 2MP 1/2.8" sensor offers HD resolution with excellent spectral sensitivity for both visible and NIR wavelengths, making it a true day/night camera providing clear color images by day and black and white images at night.

Paired with the precision-engineered 4.8–144mm lens, this camera boasts a 30X continuous optical zoom range offering anything from a wide 69.8° to a narrow 2.22° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 940mm lens.

More Info video
50
ppm
Pixels Per Meter @ 1km
30X
Zoom Factor
2
MP
Sensor Resolution

8M-8X

5–40mm 8X Long-Range Visible/NIR 8MP Camera

The 8MP 1/2.8" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 5–40mm lens, this camera boasts a 8X continuous optical zoom range offering anything from a wide 58.3° to a narrow 8° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 250mm lens.

More Info
27
ppm
Pixels Per Meter @ 1km
8X
Zoom Factor
8
MP
Output Resolution

12M-3X

3.9–14.5mm 3X Wide Angle Visible/NIR 12MP Camera

The 12MP 1/2.3" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 3.9–14.5mm lens, this camera has a 3X continuous optical zoom range offering anything from a wide 74.6° to a 24° field-of-view. That's equivalent to a “full-frame” 35mm camera with a 24–85mm lens.

More Info
9.4
ppm
Pixels Per Meter @ 1km
3X
Zoom Factor
12
MP
Output Resolution

Thermal Camera Options

An optional thermal imager lets you see further than any other night vision technology. Unlike traditional visible cameras, thermal imaging uses heat rather than light to see objects. Humans, animals, and vehicles are hot in contrast to most backgrounds, making trespassers hiding in shadows or bushes easy to spot. Thermal images are also unaffected by bright light and have the ability to see through atmospheric obstructions such as smoke, dust, and light fog.

Learn more about Thermal Imaging

55TI

55mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 55mm germanium lens, boasting a very wide ƒ/1.0 aperture, for long-range detection of thermal targets up to 6km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
4.6
PPM @ 1km
6.0
km
DRI Detection Distance*
12
μm
Pixel Pitch
8.0°
Horizontal FOV

35TI

35mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 35mm germanium lens, boasting a very wide ƒ/1.0 aperture, for long-range detection of thermal targets up to 3.2km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
2.9
PPM @ 1km
3.2
km
DRI Detection Distance*
12
μm
Pixel Pitch
12.5°
Horizontal FOV

25TI

25mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 25mm germanium lens, boasting a very wide ƒ/1.0 aperture, for long-range detection of thermal targets up to 2.3km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
2.1
PPM @ 1km
2.3
km
DRI Detection Distance*
12
μm
Pixel Pitch
17.5°
Horizontal FOV

19TI

19mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 19mm germanium lens, boasting a very wide ƒ/1.0 aperture, for long-range detection of thermal targets up to 1.7km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
1.6
PPM @ 1km
1.7
km
DRI Detection Distance*
12
μm
Pixel Pitch
22.9°
Horizontal FOV

13TI

13mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 13mm germanium lens, boasting a wide ƒ/1.2 aperture, for long-range detection of thermal targets up to 1.2km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
1.1
PPM @ 1km
1.2
km
DRI Detection Distance*
12
μm
Pixel Pitch
32.9°
Horizontal FOV

9TI

9mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 9mm germanium lens, boasting a wide ƒ/1.2 aperture, for long-range detection of thermal targets up to 825m away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
.75
PPM @ 1km
825
m
DRI Detection Distance*
12
μm
Pixel Pitch
46.2°
Horizontal FOV

IR Illumination Options

If thermal imaging is beyond the budget or if you need high definition night vision imaging, we have various infrared illumination options available.

750M-ZLID

750m ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 750m of long-range illumination in complete darkness.

More Info
750
m
Illumination Distance
808
nm
Wavelength
26
m
NOHD

500M-ZLID

500m ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 500m of long-range illumination in complete darkness.

More Info
500
m
Illumination Distance
808
nm
Wavelength
19
m
NOHD

300M-ZLID

300m ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 300m of long-range illumination in complete darkness.

More Info
300
m
Illumination Distance
808
nm
Wavelength
15
m
NOHD

150M-IR

150m IR LED Night Vision

An array of infrared LEDs will be used to illuminate a scene even in complete darkness, up to 150m

More Info
150
m
Illumination Distance
808
nm
Wavelength
0
m
NOHD
Atlas Dust and Splashproof

Environmental Protection

The Atlas enclosure is designed with an ingress protection rating of IP67, protecting the internal components from dust, dirt and liquids. This protection allows the Atlas to withstand a wide variety of environmental conditions including rain and snow.

Military Connector

The Atlas’s communication cable uses a rugged military-grade connector that locks the cable in place while protecting it from rain and dust. It has the added advantage of being incredibly quick to connect or disconnect, making the Atlas an ideal camera for a rapid deployment solution. Custom cable lengths and cable configurations are also available build-to-order.

Custom cable with military connector
