Sentry Dual-Sensor PTZ Camera System with Visible & Thermal Imaging

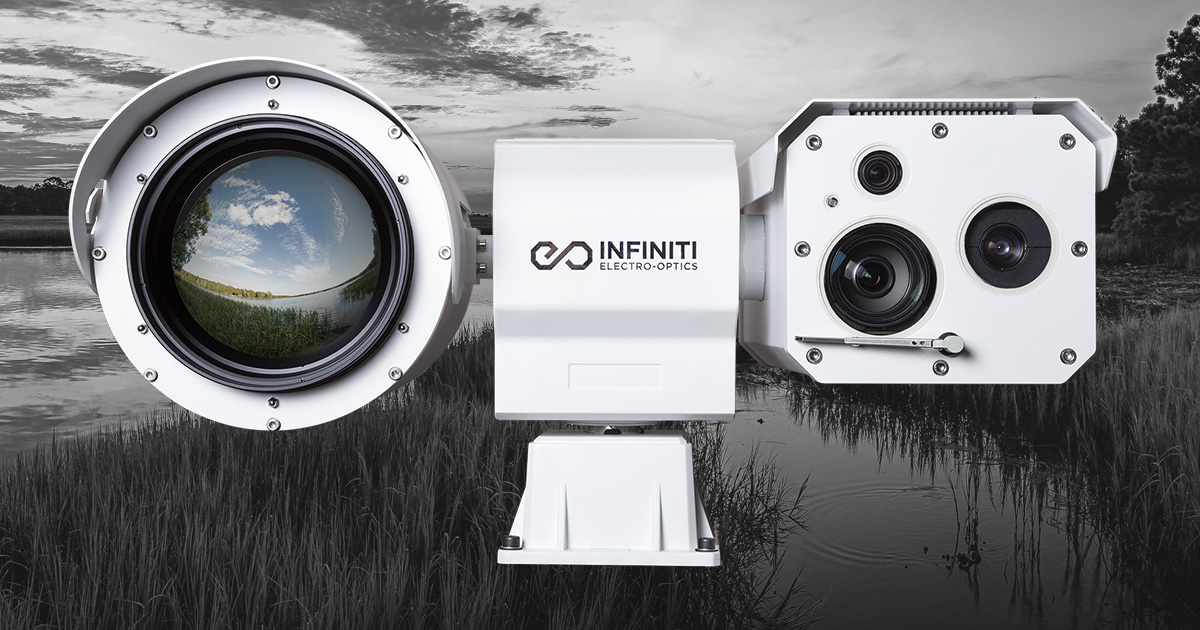

Sentry Rugged, Dual-Sensor PTZ Camera System

The Sentry is a modular multi-sensor PTZ that can be configured with our long range visible, ZLID™, and thermal camera options. These include our 4K/8 Megapixel 10.6-1015mm 95X zoom day/night camera,thermal imaging cameras up to 700mm, and up to 4km of ZLID™ illumination.

Combining these multiple sensors allows for accurate detection, recognition, and identification of potential threats. Active deterrence measures such as LRADs, spotlights, and laser dazzlers can also be integrated to ensure threats are not just detected, but mitigated.

The Sentry’s strengthened aluminum construction and rugged IP66 housings use anti-corrosive coatings, allowing it to withstand the harshest climates for dependable perimeter security, mobile/marine vessels, homeland defense, and coastal protection.

Visible Camera Options

Infiniti’s VIS/NIR zoom cameras utilize the visible and near-infrared bands of light to provide high-quality images optimized for long-range surveillance. They are designed to provide industry-leading performance and quality, with image resolutions ranging from 1080p HD (2MP) to UltraHD 4K (8MP).

Learn more about Visible Light Imaging

8M-95X

10.6–1015mm 95X Long-Range Visible/NIR 8MP Camera

The 8MP 1/1.8" sensor offers greatly increased 4K resolution. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 10.6–1015mm lens, this camera boasts a 95X continuous optical zoom range offering anything from a wide 42.0° to a very narrow 0.43° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 4750mm lens.

More Info
508
ppm
Pixels Per Meter @ 1km
95X
Zoom Factor
8
MP
Output Resolution

79X

15.5–1235mm 79X Long-Range Visible/NIR 2MP Camera

The 4.1MP 1/2" sensor offers increased detail for the 2MP 1080p output. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 15.5–1235mm lens, this camera boasts a 79X continuous optical zoom range offering anything from a wide 27.0° to a very narrow 0.33° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 6000mm lens.

More Info
329
ppm
Pixels Per Meter @ 1km
79X
Zoom Factor
2
MP
Output Resolution

4M-95X

10–955mm 95X Long-Range Visible/NIR 4MP Camera

The 4MP 1/1.7" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 10–955mm lens, this camera boasts a 95X continuous optical zoom range offering anything from a wide 42.9° to a very narrow 0.47° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 4450mm lens.

More Info
327
ppm
Pixels Per Meter @ 1km
95X
Zoom Factor
4
MP
Output Resolution

4M-53X

15–800mm 53X Long-Range Visible/NIR 4MP Camera

The 4MP 1/1.7" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 15–800mm lens, this camera boasts a 53X continuous optical zoom range offering anything from a wide 29.4° to a very narrow 0.56° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 3700mm lens.

More Info
274
ppm
Pixels Per Meter @ 1km
53X
Zoom Factor
4
MP
Output Resolution

59X

14.8–875mm 59X Long-Range Visible/NIR 2MP Camera

The 4MP 1/1.7" sensor offers increased sharpness while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 14.8–875mm lens, this camera boasts a 59X continuous optical zoom range offering anything from a wide 29.8° to a very narrow 0.51° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 4000mm lens.

More Info
214
ppm
Pixels Per Meter @ 1km
53X
Zoom Factor
2
MP
Output Resolution

8M-49X

5.6–272mm 49X Long-Range Visible/NIR 8MP/4K Camera

The 8MP 1/1.8" sensor offers incredible 4K resolution while maintaining great low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 5.6–272mm lens, this camera boasts a 49X continuous optical zoom range offering anything from a wide 75° to a narrow 1.62° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 1275mm lens.

More Info
136
ppm
Pixels Per Meter @ 1km
49X
Zoom Factor
8
MP
Sensor Resolution

38X

7.2–270mm 38X Long-Range Visible/NIR 2MP Camera

The 2.4MP 1/2.8" sensor offers HD resolution with excellent spectral sensitivity for both visible and NIR wavelengths, making it a true day/night camera providing clear color images by day and black and white images at night.

Paired with the precision-engineered 7.2–270mm lens, this camera boasts a 38X continuous optical zoom range offering anything from a wide 43.5° to a narrow 1.18° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 1750mm lens.

More Info
93
ppm
Pixels Per Meter @ 1km
38X
Zoom Factor
2
MP
Output Resolution

4M-49X

5.6–272mm 49X Long-Range Visible/NIR 4MP Camera

The 4MP 1/1.7" sensor offers increased resolution while maintaining excellent low light sensitivity. The ability to view both visible and NIR wavelengths makes it a true day/night camera, and the mechanical visible cut filter allows the user to view NIR wavelength in the daytime to help filter out fog, haze and other atmospheric distortions.

Paired with the precision-engineered 5.6–272mm lens, this camera boasts a 49X continuous optical zoom range offering anything from a wide 76.3° to a narrow 1.66° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 1250mm lens.

More Info
93
ppm
Pixels Per Meter @ 1km
49X
Zoom Factor
4
MP
Sensor Resolution

8M-30X

6–180mm 30X Long-Range Visible/NIR 8MP/4K Camera

The 8MP 1/1.8" sensor offers incredible 4K resolution with excellent spectral sensitivity for both visible and NIR wavelengths, making it a true day/night camera providing clear color images by day and black and white images at night.

Paired with the precision-engineered 6–180mm lens, this camera boasts a 30X continuous optical zoom range offering anything from a wide 65.2° to a narrow 2.44° field-of-view. That's equivalent to a “full-frame” 35mm camera using a 840mm lens.

More Info
90
ppm
Pixels Per Meter @ 1km
30X
Zoom Factor
8
MP
Sensor Resolution

Thermal Camera Options

Thermal cameras, unlike traditional visible cameras, use heat rather than light to see objects. Humans, animals, and vehicles are all quite hot in contrast to most surroundings, making intruders hiding in shadows or bushes easy to spot. Thermal images are also unaffected by bright lights and can see through atmospheric obstructions such as smoke, dust, and light fog. This makes thermal imaging an ideal technology for many applications including surveillance and security, search and rescue, fire fighting, marine and land navigation, wide area situational assessment, and much more.

700CTZ-HD

36–700mm, HD Cooled Thermal

A high-sensitivity MWIR cooled thermal 10μm InSb sensor, with a resolution of 1280×1024 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/4.0 germanium zoom lens, the 19X optical zoom results in a FOV from 20.2° to 1.05°, allowing for long-range vehicle detection* up to 50km away at 1.4ppm.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
70
PPM @ 1km
55+
km
DRI Detection Distance*
10
μm
Pixel Pitch
1.05°
Horizontal FOV

410CTZ-HD

18–410mm, HD Cooled Thermal

A high-sensitivity MWIR cooled thermal 10μm InSb sensor, with a resolution of 1280×1024 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/4.0 germanium zoom lens, the 22X optical zoom results in a FOV from 39.1° to 1.79°, allowing for long-range vehicle detection* up to 45km away.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
41
PPM @ 1km
45
km
DRI Detection Distance*
10
μm
Pixel Pitch
1.79°
Horizontal FOV

260CTZ-HD

18–260mm, HD Cooled Thermal

A high-sensitivity MWIR cooled thermal 10μm InSb sensor, with a resolution of 1280×1024 and a cooler lifetime of 10,000 hours MTBF. Paired with an f/4.0 germanium zoom lens, the 14X optical zoom results in a FOV from 39.1° to 2.82°, allowing for long-range vehicle detection* up to 28km away.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
26
PPM @ 1km
28
km
DRI Detection Distance*
10
μm
Pixel Pitch
2.82°
Horizontal FOV

700CTZ

36–700mm, SD Cooled Thermal

A high-sensitivity MWIR cooled thermal 15μm X-Hot sensor, with a resolution of 640×480 and a cooler lifetime of up to 35,000 hours MTBF. Paired with an f/3.6 germanium zoom lens, the 19X optical zoom results in a FOV from 10.2° to 0.52°, allowing for long-range vehicle detection* up to 50km away at 1.4ppm.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
70
PPM @ 1km
55+
km
DRI Detection Distance*
10
μm
Pixel Pitch
0.52°
Horizontal FOV

430CTZ

30–430mm, SD Cooled Thermal

A high-sensitivity MWIR cooled thermal 15μm X-Hot sensor, with a resolution of 640×480 and a cooler lifetime of up to 35,000 hours MTBF. Paired with an f/3.6 germanium zoom lens, the 14X optical zoom results in a FOV from 12.2° to 0.85°, allowing for long-range vehicle detection* up to 47km away.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
43
PPM @ 1km
47
km
DRI Detection Distance*
10
μm
Pixel Pitch
0.85°
Horizontal FOV

235CTZ

15–235mm, SD Cooled Thermal

A high-sensitivity MWIR cooled thermal 15μm X-Hot sensor, with a resolution of 640×480 and a cooler lifetime of up to 35,000 hours MTBF. Paired with an f/3.6 germanium zoom lens, the 15X optical zoom results in a FOV from 24.1° to 1.56°, allowing for long-range vehicle detection* up to 25km away.

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
23.5
PPM @ 1km
25
km
DRI Detection Distance*
10
μm
Pixel Pitch
1.56°
Horizontal FOV

310TIZ

31–310mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 31–310mm germanium zoom lens, boasting a wide ƒ/1.3 aperture, for long-range detection of thermal targets up to 28km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
25.8
PPM @ 1km
28
km
DRI Detection Distance*
12
μm
Pixel Pitch
1.42°
Horizontal FOV

230TIZ

26–230mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 26–230mm germanium zoom lens, boasting a wide ƒ/1.3 aperture, for long-range detection of thermal targets up to 21km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
19.2
PPM @ 1km
21
km
DRI Detection Distance*
12
μm
Pixel Pitch
1.91°
Horizontal FOV

185TIZ

34–185mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 34–185mm germanium zoom lens, boasting a very wide ƒ/1.2 aperture, for long-range detection of thermal targets up to 16.5km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
15.4
PPM @ 1km
16.5
km
DRI Detection Distance*
12
μm
Pixel Pitch
2.38°
Horizontal FOV

155TIZ

32–155mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 32–155mm germanium zoom lens, boasting a very wide ƒ/1.2 aperture, for long-range detection of thermal targets up to 14.2km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
12.9
PPM @ 1km
14.2
km
DRI Detection Distance*
12
μm
Pixel Pitch
2.84°
Horizontal FOV

130TIZ

25–130mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 25–130mm germanium zoom lens, boasting a very wide ƒ/1.2 aperture, for long-range detection of thermal targets up to 11.9km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
10.8
PPM @ 1km
11.9
km
DRI Detection Distance*
12
μm
Pixel Pitch
3.38°
Horizontal FOV

105TIZ

20–105mm, Uncooled Thermal

Infiniti uses cutting-edge 12μm LWIR VOx uncooled thermal sensors with resolutions of 384×288, 640×512 or 1280×1024 HD. The 12μm pixel pitch is able to achieve 40% further range than 17μm sensors.

We pair the uncooled VOx core with our precision-engineered 20–105mm germanium zoom lens, boasting a very wide ƒ/1.2 aperture, for long-range detection of thermal targets up to 9.6km away.*

*Please read our DRI Whitepaper to properly understand what “detection” means in thermal camera ratings.

More Info
8.75
PPM @ 1km
9.6
km
DRI Detection Distance*
12
μm
Pixel Pitch
4.19°
Horizontal FOV

IR Illumination Options

Infrared illumination allows for covert and detailed video surveillance when there isn’t enough natural light, but most IR illumination solutions are very limited in range. Infiniti’s ZLID™ technology uses infrared lasers to achieve far further illumination than what is possible with typical IR LEDs, synchronizing the IR intensity and area illumination with the zoom lens for outstanding active IR performance at distances up to 5km.

4000M-ZLID

4km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 4km of long-range illumination in complete darkness.

More Info
4000
m
Illumination Distance
808
nm
Wavelength
266
m
NOHD

3000M-ZLID

3km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 3km of long-range illumination in complete darkness.

More Info
3000
m
Illumination Distance
808
nm
Wavelength
238
m
NOHD

2000M-ZLID

2km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 2km of long-range illumination in complete darkness.

More Info
2000
m
Illumination Distance
808
nm
Wavelength
69
m
NOHD

1500M-ZLID

1.5km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 1.5km of long-range illumination in complete darkness.

More Info
1500
m
Illumination Distance
808
nm
Wavelength
57
m
NOHD

1000M-ZLID

1km ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 1km of long-range illumination in complete darkness.

More Info
1000
m
Illumination Distance
808
nm
Wavelength
50
m
NOHD

750M-ZLID

750m ZLID™ Night Vision Illuminator

A powerful infrared laser will be synced with the angles of the zoom lens to provide up to 750m of long-range illumination in complete darkness.

More Info
750
m
Illumination Distance
808
nm
Wavelength
26
m
NOHD

500M-IR

500m IR LED Night Vision

An array of infrared LEDs will be used to illuminate a scene even in complete darkness. Range is limited to about 500m

More Info
500
m
Illumination Distance
808
nm
Wavelength
0
m
NOHD

Environmental Protection

The Sentry’s enclosure is designed with an ingress protection rating of IP66, protecting the internal components from dust, dirt and liquids. This protection allows the Sentry to withstand a wide variety of environmental conditions including rain and snow.

Military Connector & Custom Cable Options

The Sentry’s communication cable uses a rugged military-grade connector that locks the cable in place while protecting it from rain and dust. It has the added advantage of being incredibly quick to connect or disconnect, and custom cable lengths and cable configurations are also available build-to-order.

Custom cable with military connector

We Custom Build

Every situation is unique and has different needs. We balance your budget with the performance you require and suggest the ideal components that ensure that you’re getting the best value solution for your application.
